OBJECT MODELING CHALLENGE

18/12/2024

TRIPOD 3D MODEL

This is one of my personal projects. I did this modeling challenge to learn new skills as well as keeping my current CAD skills sharp. This project was modeled using calipers to obtain real-world measurements from my physical Tripod. The model consists of 42 unique parts. These parts were made into 2 sub assemblies, and a main assembly containing a total of 76 parts.

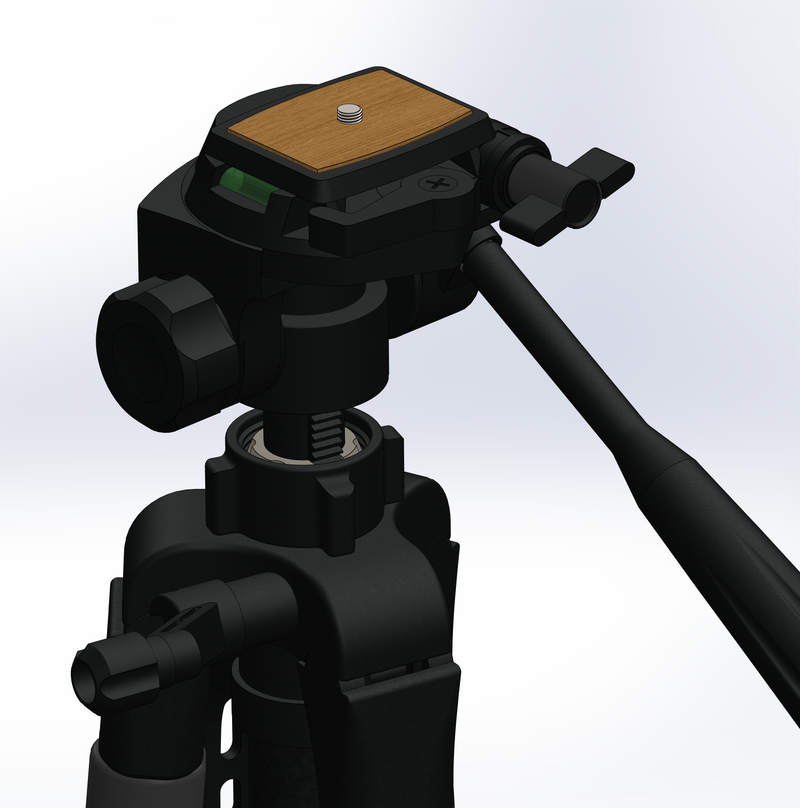

TRIPOD 3D MODEL

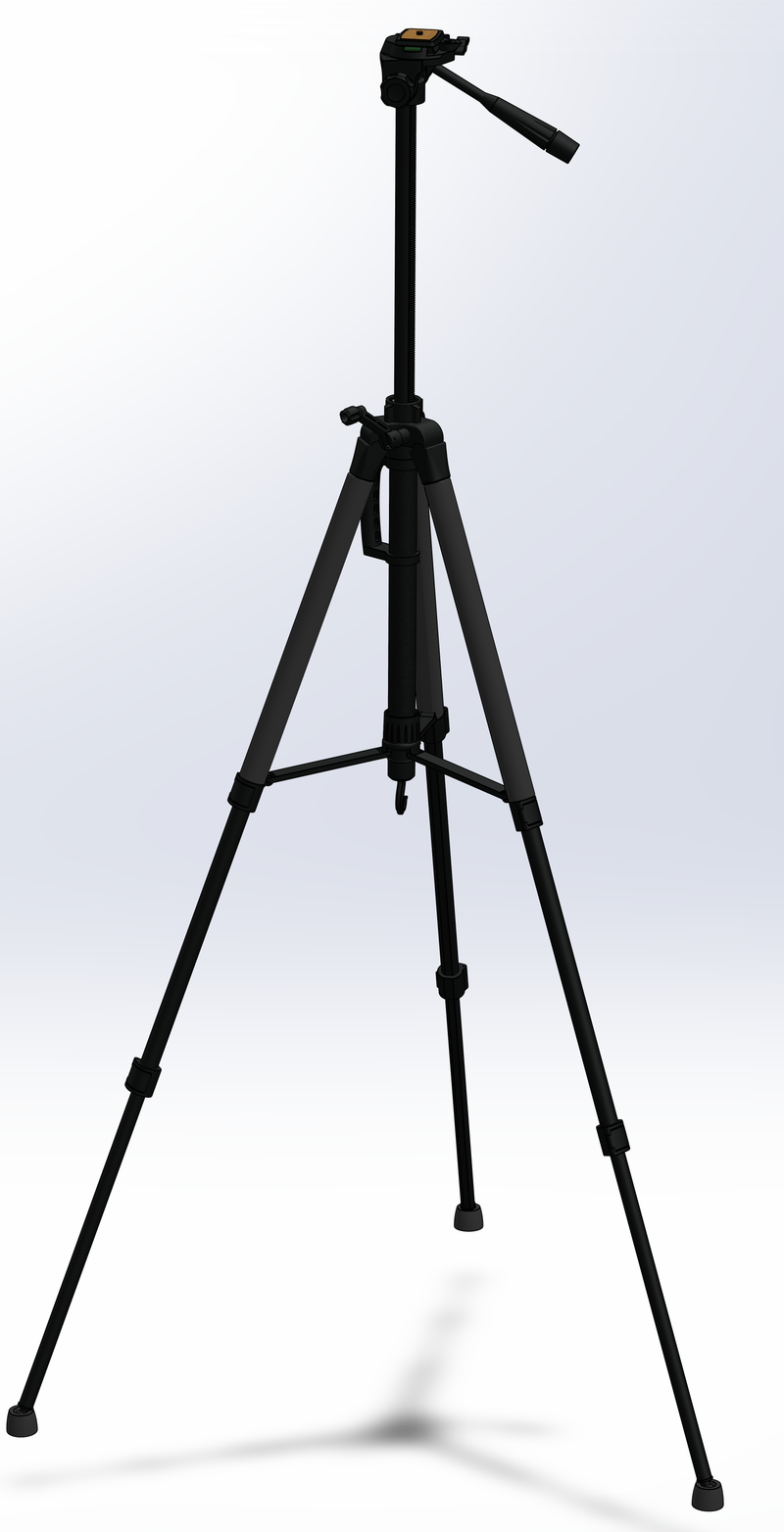

TRIPOD 3D MODEL

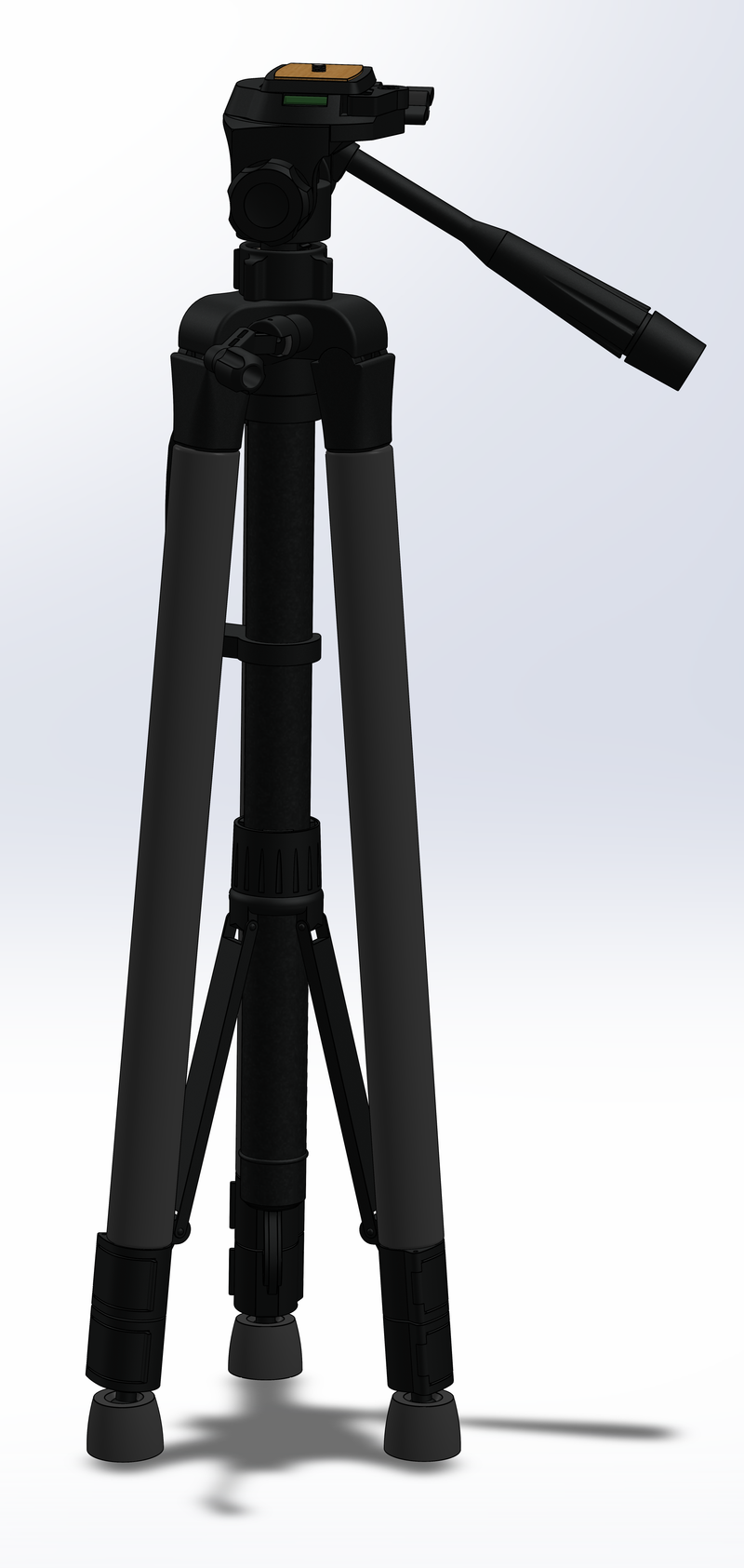

TRIPOD 3D MODEL

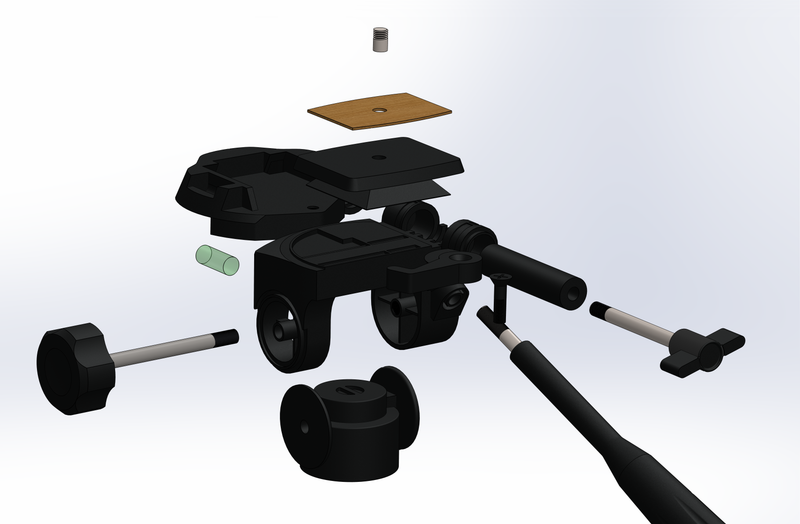

TRIPOD 3D MODEL

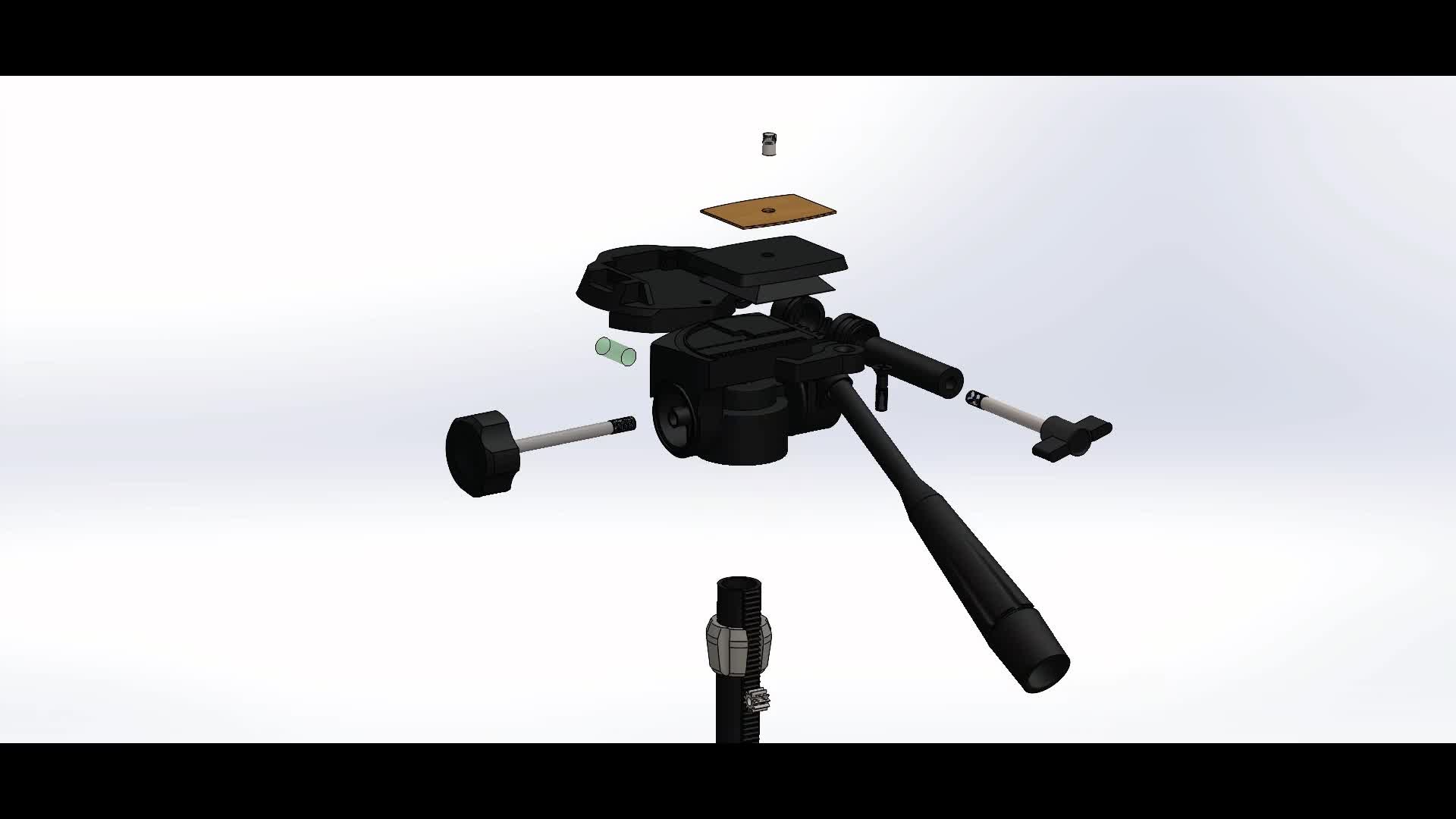

TRIPOD ANIMATIONS

The link below is my published Assembly on GrabCAD. All part files and more images can be found here: https://grabcad.com/library/tripod-25

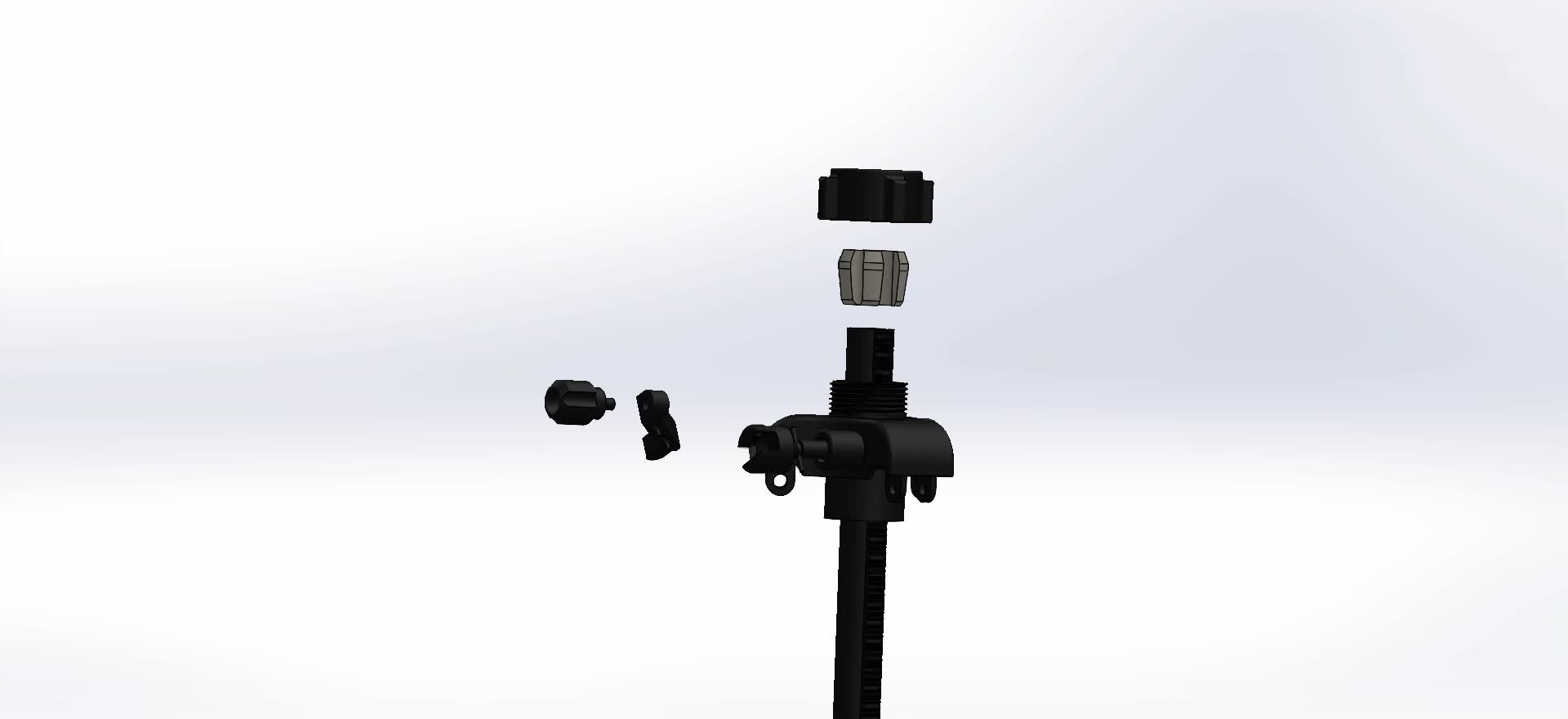

TRIPOD ANIMATIONS

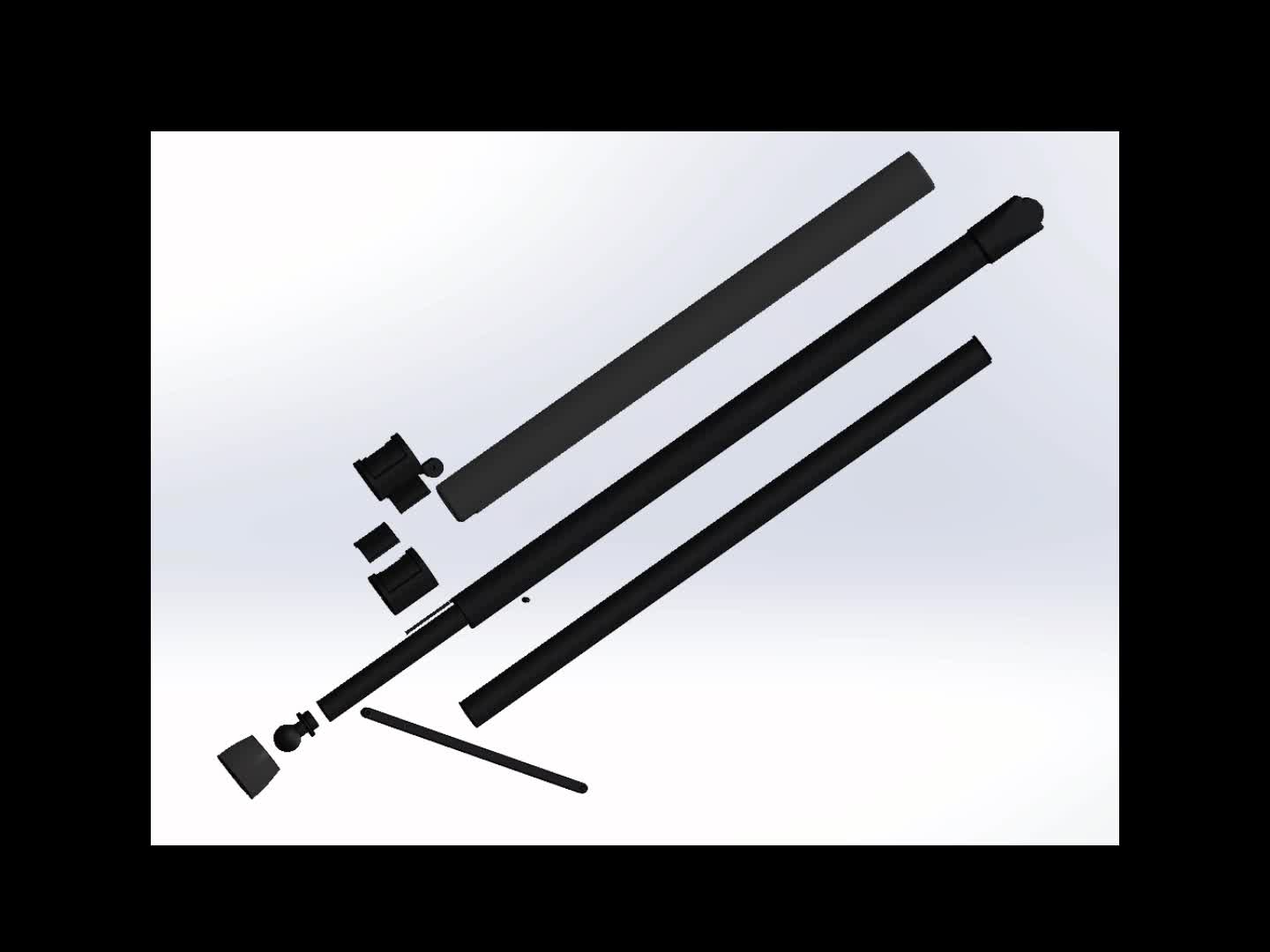

TRIPOD ANIMATIONS

TRIPOD ANIMATIONS
